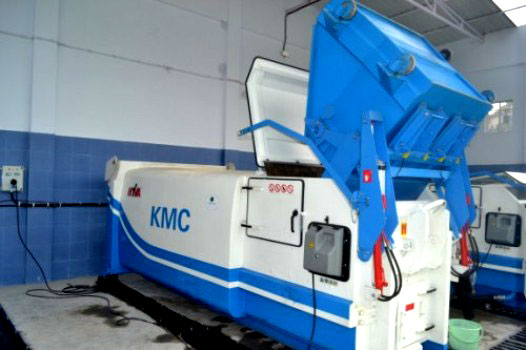

A Portable Compactor is an integral Unit comprising of a Compactor and a Container Body Mounted on a frame with rollers and is designed to be transported by specially designed Hook Loader Unit, which is driven to the dumping ground/processing plant for discharge of compacted garbage.
The Portable Compactors are designed for installation at street corners to receive Solid Waste from handcart at a time into a bucket, unload and compact the same hydraulically into the container body.
• Dismountable Integral Static Compactor.
In the new system more garbage could be accommodated in the compotators. Each of the compactors had an eight metric ton capacity, but this includes only solid waste.

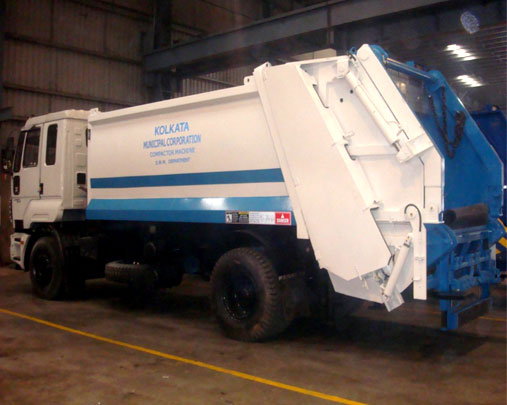

The Mobile Compactor Vehicles are the solid waste collection equipment designed for lifting and unloading the garbage from garbage bins/containers, compaction transportation to dumping ground/transfer stations/processing plants. The Refuse compactor are having container volume of 8 Cu.m., 14 Cu.m. & 18 Cu.m. mounted on standard truck chassis of 11/16/25 Ton GVW Truck Chassis.
All the three Compactors are fitted with Universal Bin Lifter capable of unloading garbage from 240 Ltrs, 660 Ltrs. and 1100 Ltrs. Bins. The Compactors of 14 Cu.m. & 18 Cu.m. container volume are also provided with Dumper Placer Arms and Stabilizers which can unload garbage from 3500 ltrs. Bins.
• Real End Loading Compactor with Universal Bin Lifter.

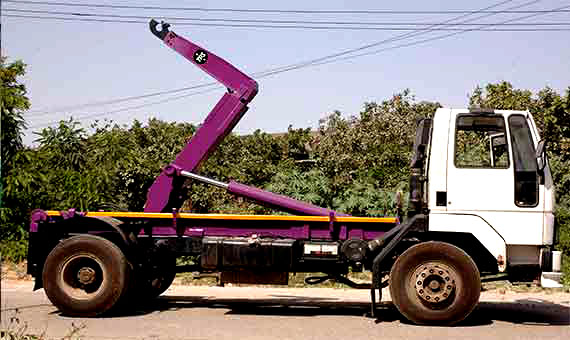

Hook Loaders are capable of handling containers upto 25 Cu.M capacity. The Hook Lifters are designed to lift loaded or empty skip containers from the ground and transporting them to dumping yard for the discharge of the dumping material. This is done through the hydraulic tipping of the container.
Hook Loader Containers as municipal solid waste management equipment system are an open / closed type mild, steel welded containers of 12 to 20 Cubic Meters capacity. It has a rear dump discharge door and is equipped with rollers and hooks having roll-on / roll-off facilities which are specifically designed for loading, transporting, tipping and unloading of these containers through a truck mounted hook loader.
The combined use of a crane and hook loader is an ideal solution for many varied applications.
• Chassis mounted hydraulic loading crane.

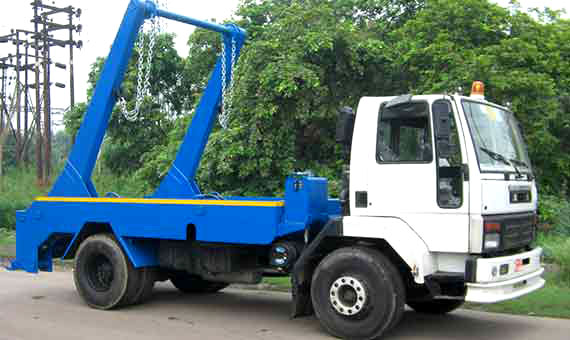

The Dumper Placer is a truck mounted equipment with hydraulically operated arms and lifting mechanism designed for lifting, transportation, tipping, lowering of garbage bins of 3 to 8 Cubic Meters capacities.
• Real End Loading Compactor with Universal Bin Lifter
• Time saving
• Time efficiency
• High performance

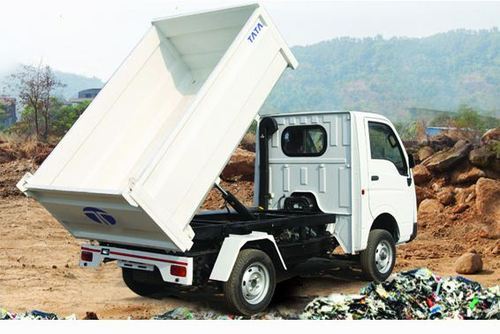

Mini Garbage Tipper can be used for door-to-door collection of Garbage. The design of the tipping hopper is in such a manner that the garbage can be unloaded directly into the Refuse Compactor or the existing secondary storage containers without any spillage. The Load Body will have one tipping bucket of minimum 1.7 Cu.M. Capacity.
